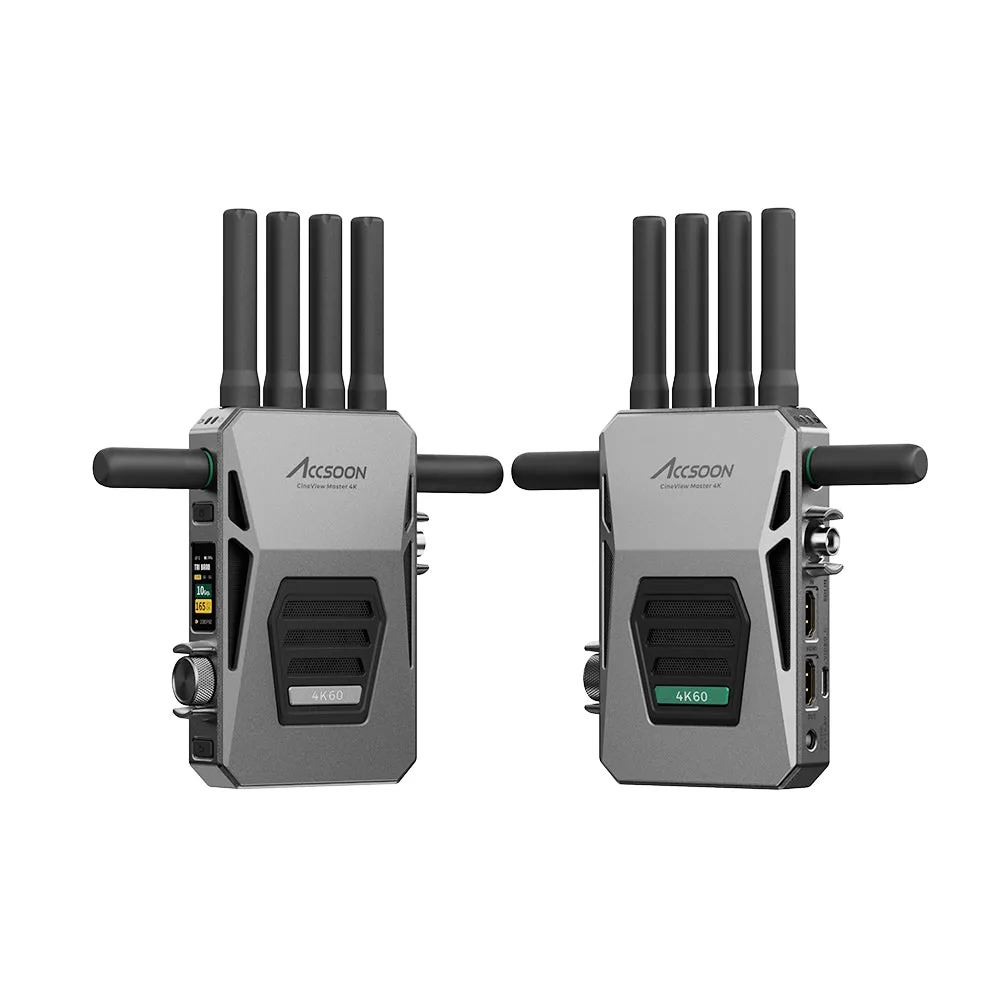

Details Come to Life End-to-End True 4K60 Video
Experience high quality details with CineView Master 4K. From input to output, this fully end-to-end 4K60 solution offers stunning 4K resolution at a fluid 60 frames per second, perfect for monitoring, recording, live-streaming and any other video productions.
Cutting-Edge Wireless Technology Pioneering Multi-Frequency Transmission
Accsoon Tri-Band transmission technology is a quantum leap forward from the previous Dual-Band transmission technology. Based on the proprietary RTMS 4.0 protocol developed by Accsoon, it integrates 2.4GHz, 5GHz, and all-new 6GHz frequencies, enabling intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency, and the ability to gracefully manage multiple connections.
Accsoon Tri-Band Transmission vs. SDR
All New 6GHz Frequency High Speed with Least Interference
Accsoon Proprietary RTMS 4.0 Protocol Crafted for Optimal Stability Performance
Intelligently utilizing 6GHz, 5GHz and 2.4GHz frequencies seamlessly
25 ms Best in Class Latency Follow the Moment, Focus the Frame
Accsoon CineView Master 4K significantly reduces latency from input to output to only 25ms. This near real-time performance is notably faster and directly addresses the demands of cinematographers, camera operators and assistants, ensuring precision and efficiency in fast-paced filming environments, enhancing overall productivity in professional filmmaking.
2.5 km Extended Long Distance
Maximized Creative Range Within Reach
Accsoon CineView Master 4K with its original revolutionary Tri-band transmission technology and innovative hardware design, achieves an impressive 2.5 km ultra-long transmission distance. Distance is no barrier to the CineView Masrer 4K. Not only does it work over vast distances, it does so with incredible stability, pushing the limits to make it the highest performing Accsoon system to date.
Multiple Video Streams for
Diverse Needs On-set
1 Wired 4 Wireless Connections Creativity upon Flexibility
Direct On-camera Video Output to Your iPhone/iPad
Compatible with: iPhone/iPad equipped with Apple A14 proccesor and above
Versatile Wireless Connections for Any Production Crew
All New User Interface Designed to Create Friendly Usability
Empowered 8K Processor
Wireless Optimized to Perfection
Accsoon developed the proprietary RTMS 4.0 protocol to work with the new High-Performance A/V Processor with 8K capabilities. In combination the protocol and the processor represent a remarkable 400% increase in processing capabilities. Driving even greater performance for synchronized multi-video streams, the processor can effortlessly manage Tri-Band multi-stream video transmission even under the most demanding conditions.
Balancing Form and Function
Engineered for Toughness
The CineView Master 4K blends beauty with utility, featuring clean lines and a balanced structure. Built to withstand the rigors of production, with its unique angles and an industrial aesthetic, the design is fresh and modern.
Intelligent, Quiet Heat Dissipation
Versatile Interfaces
Experience high quality details with CineView Master 4K. From input to output, this fully end-to-end 4K60 solution offers stunning 4K resolution at a fluid 60 frames per second, perfect for monitoring, recording, live-streaming and any other video productions.
Cutting-Edge Wireless Technology Pioneering Multi-Frequency Transmission
Accsoon Tri-Band transmission technology is a quantum leap forward from the previous Dual-Band transmission technology. Based on the proprietary RTMS 4.0 protocol developed by Accsoon, it integrates 2.4GHz, 5GHz, and all-new 6GHz frequencies, enabling intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency, and the ability to gracefully manage multiple connections.
Accsoon Tri-Band Transmission vs. SDR
All New 6GHz Frequency High Speed with Least Interference
Accsoon Proprietary RTMS 4.0 Protocol Crafted for Optimal Stability Performance
Intelligently utilizing 6GHz, 5GHz and 2.4GHz frequencies seamlessly
25 ms Best in Class Latency Follow the Moment, Focus the Frame
Accsoon CineView Master 4K significantly reduces latency from input to output to only 25ms. This near real-time performance is notably faster and directly addresses the demands of cinematographers, camera operators and assistants, ensuring precision and efficiency in fast-paced filming environments, enhancing overall productivity in professional filmmaking.
2.5 km Extended Long Distance
Maximized Creative Range Within Reach
Accsoon CineView Master 4K with its original revolutionary Tri-band transmission technology and innovative hardware design, achieves an impressive 2.5 km ultra-long transmission distance. Distance is no barrier to the CineView Masrer 4K. Not only does it work over vast distances, it does so with incredible stability, pushing the limits to make it the highest performing Accsoon system to date.
Multiple Video Streams for
Diverse Needs On-set
1 Wired 4 Wireless Connections Creativity upon Flexibility
Direct On-camera Video Output to Your iPhone/iPad
Compatible with: iPhone/iPad equipped with Apple A14 proccesor and above
Versatile Wireless Connections for Any Production Crew
All New User Interface Designed to Create Friendly Usability
Empowered 8K Processor
Wireless Optimized to Perfection
Accsoon developed the proprietary RTMS 4.0 protocol to work with the new High-Performance A/V Processor with 8K capabilities. In combination the protocol and the processor represent a remarkable 400% increase in processing capabilities. Driving even greater performance for synchronized multi-video streams, the processor can effortlessly manage Tri-Band multi-stream video transmission even under the most demanding conditions.
Balancing Form and Function
Engineered for Toughness
The CineView Master 4K blends beauty with utility, featuring clean lines and a balanced structure. Built to withstand the rigors of production, with its unique angles and an industrial aesthetic, the design is fresh and modern.
Intelligent, Quiet Heat Dissipation
Versatile Interfaces
Specifications:
| Transmitter | Receiver | |
| A/V Processor | 8K High Performance Processor | |
| Protocol | Proprietary RTMS 4.0 protocol developed by Accsoon | |
| Video Input | HDMI, 3G SDI | |
| Video Output | HDMI Loop-Out USB Video Out (to iOS) | HDMI, 3G SDI |
| SDI Input Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i | - |
| HDMI Input Format | 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p 1080p: 23.98/24/25/29.97/30/50/59.94/60p 1080i: 50/59.94/60i | - |
| SDI Output Format | - | 1080p: 24/25/30/50/60p Level A 1080i: 50/60i |
| HDMI Output Format | - | 4K (3840*2160): 24/25/30/50/60p 1080p: 24/25/30/50/60p 1080i: 50/60i |
| HDMI Loop-out Format | Identical to the HDMI video input | |
| DC Port | 5.5mmx2.1mm, center positive | |
| DC Voltage | 7.4~16.8V | |
| Battery | Compatible with NP-F550, NP-F750, NP-F970 battery | |
| Power Consumption | 6.5W average *Without powering other devices | 5.0W average |
| Audio | HDMI embedded, SDI embedded | |
| Latency | 1080p 60 < 25ms 4K 60 < 35ms (Camera latency not included) | |
| Transmission Range | 2.5 km (No obstacles, no interference) | |
| Operating Environment Temperature | -10~40 | |
| Dimensions (Antennas Not Included) | 130mm x 95mm x 32 mm | |
| Weight (Antennas Not Included) | 322g | 320g |

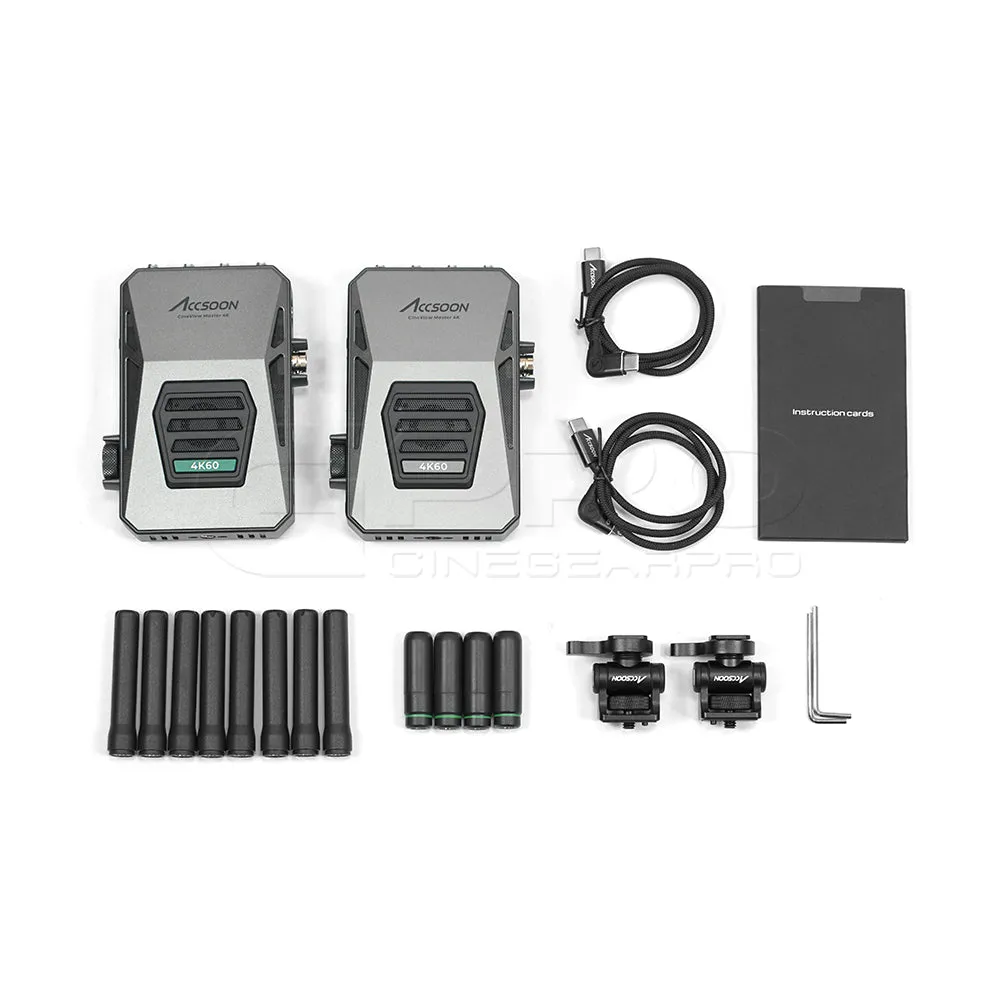

Package Contents:
1x RX
1x TX
8x Long Antenna
4x Short Antenna
2x USB Cable
2x Cold Shoe Adapter
2x Hex Key
