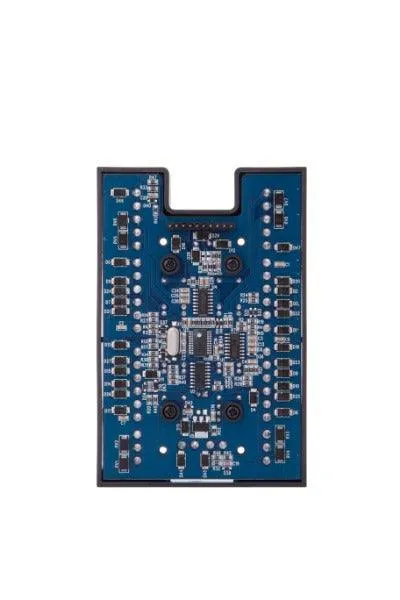

The Rosslare MD-D04B is a convenient expansion module for AC-425/425IP access control panels. With a 4-reader interface, 4 supervised inputs, and 4 relay outputs (5 Amp Form-C N.O./N.C.), it easily integrates into the panel and offers end-of-line (EOL) resistor protection.
Installation of the module takes under one minute with the tailored expansion port in the panels and auto-recognize by the panel.
Once it is installed and the panel is powered on, the expansion is recognized by the AxTraxNG Server, and the MD-D04B can be programmed for access control and automation.
Advanced communication with the controllerallows for firmware updates and real-time event logging, with support for fulloffline operation by the host panel.
Model: MD-D04B
Main Features:- Additional four proximity readers or keypads
- Four relay outputs and four supervised inputs to the access control panel
- Wiegand or Clock-and-Data transmission keypad or biometric reader compatibility
- LED status feedback for 12 V power and relay activation
- Cost-effective and modular installation
- Compatible with Rosslares AC-425 networked controller
- Input and output configurability using Rosslares AxTraxNG software
