2-Reader Expansion Module for AC-225x-B Control Panel

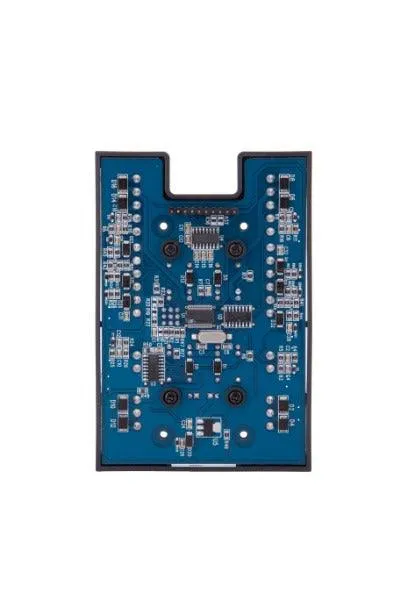

Rosslares MD-D02B is a plug-in expansion module for Rosslares AC-225x-B
access control panels that provides a 2-reader interface, 4 supervised inputs
with end-of-line (EOL) resistor protection, and 4 relay outputs (5 Amp Form-C
N.O./N.C.) to the panel. Installation of the module takes under one minute
with the tailored expansion port in the panels and auto-recognize by the
panel. Once it is installed and the panel is powered on, the expansion is
recognized by the AxTraxNG server, and the MD-D02B can be programmed for
access control and automation. Advanced communication with the controller
allows for firmware updates and real-time event logging, with support for full
offline operation by the host panel.
Model: MD-D02B
Main Features:- Additional two proximity readers or keypads
- Four relay outputs and four supervised inputs to the access control panel
- Wiegand or Clock-and-Data transmission keypad or biometric reader compatibility
- LED status feedback for 12 V power and relay activation
- Cost-effective and modular installation
- Input and output configurability using Rosslares AxTraxNG software
